| Frame |
aluminium 6061, hydroformed, quick-release 5 x 135mm, disc brake Post Mount |
| Drive unit |
Yamaha PW-ST System, 250W, 70Nm, 25km/h |
| Display |
Yamaha Multi Switch 2.8" TFT, 16 functions |
| Battery |
Yamaha InTube, 500 Wh |
| Charger |
Yamaha quick charger 4A |

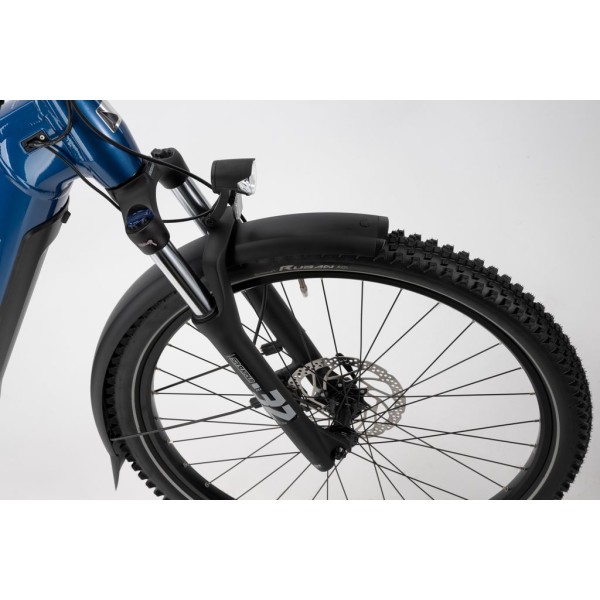

| Fork |
SR Suntour NCX D-LO Lockout, steel spring, Travel: 63mm, steel steerer tube 1 1/8", quick release |

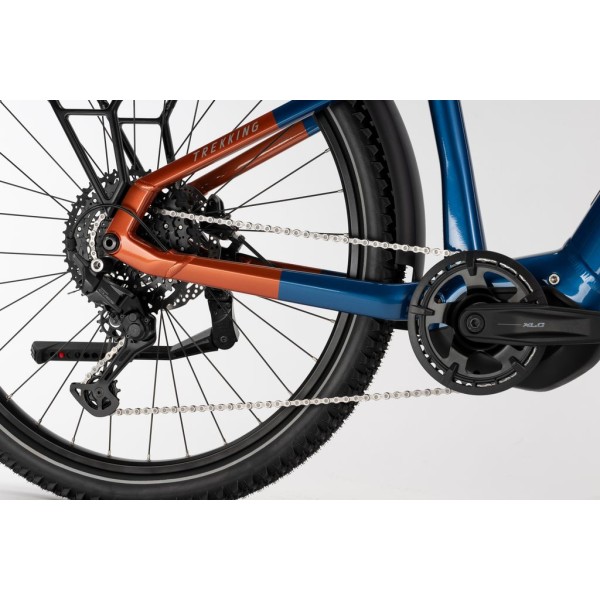

| Shifting system |
Shimano Deore XT T8000, 20 speed |
| Front derailleur |
Shimano Deore XT T8000 |
| Gear lever |
Shimano Deore M6000, rapidfire |
| Rear sprocket |
Shimano HG50, 11-36 teeth |
| Chain |
KMC e10S |
| Chain ring |
36-48, aluminium |
| Brake lever |
Shimano MT401, aluminium |
| Front brake |
Shimano MT400, 180mm, aluminium, 2-piston disc brake |
| Rear brake |
Shimano MT400, 160mm, aluminium, 2-piston disc brake |
| Tyres |
Schwalbe Smart Sam, 47-622 |
| Rims |
Rodi Black Rock 21, with eylets, hollow rim, aluminium |
| Front wheel hub |
Shimano M3050 |
| Rear wheel hub |
Shimano M3050 |
| Spokes |
Sapim Leader, black |

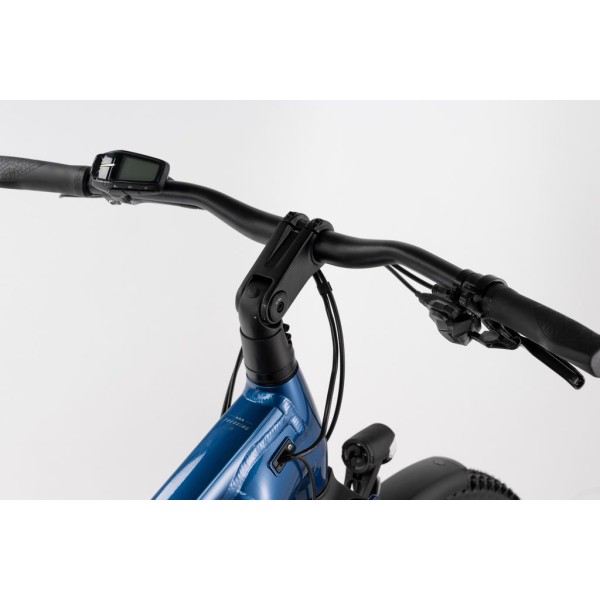

| Handlebar |
Haibike Components TheBar ++ 740mm |
| Grips |
XLC Comfort bo3 with wrist rest |
| Stem |
Haibike Components TheStem ++, A-head, Bar bore: 31.8mm, 6 |
| Head set |
A-Head Alloy 1 1/8", Cartridge |
| Saddle |
Haibike Components TheSaddle |
| Seat post |
Haibike Components TheSeatpost ++, 31.6mm, aluminium |
| Pedals |
VP E461 mit Reflektor, aluminium |
| Kick stand |
Ursus Mooi, adjustable |
| Total perm. weight |
130kg |
| Wheel size |
28" |
